JA Solar 500W N-Type Bifacial Solar Panel | JAM60D41-500/LB (Black Frame)
The JA Solar JAM60D41-500/LB is a high-efficiency n-type double-glass bifacial module engineered for long service life and strong energy yield. Using advanced half-cell technology, it delivers reliable front-side output while capturing additional rear-side generation, making it ideal for commercial rooftops and ground-mount systems.
Key Specifications
• Model – JAM60D41-500/LB
• Rated Power (STC) – 500W
• Cell Type – N-Type Monocrystalline, bifacial
• Cell Configuration – 120 half-cells (6×20)
• Module Efficiency – 22.6%
• Maximum Power Voltage (Vmp) – 36.91V
• Maximum Power Current (Imp) – 13.55A
• Open-Circuit Voltage (Voc) – 43.85V
• Short-Circuit Current (Isc) – 14.42A
• Bifaciality – 80% ±10%
• Maximum System Voltage – 1500V DC
• Maximum Series Fuse Rating – 30A
• Operating Temperature – −40°C to +85°C
• Front / Back Glass – 2.0mm / 2.0mm tempered glass
• Frame – Anodized aluminum alloy, black, 30mm
• Junction Box – IP68, 3 bypass diodes
• Connector – QC 4.10-35I / MC4-EVO2 compatible
• Cable Length – Portrait: 300mm ±100mm / Landscape: 1200mm ±100mm
• Dimensions – 1953 × 1134 × 30 mm (76.9 × 44.6 × 1.18 in)
• Weight – 27.3 kg (60.2 lbs)
• Mechanical Load – 5400 Pa (front) / 2400 Pa (rear)
• Fire Rating – UL Type 29 / Class C

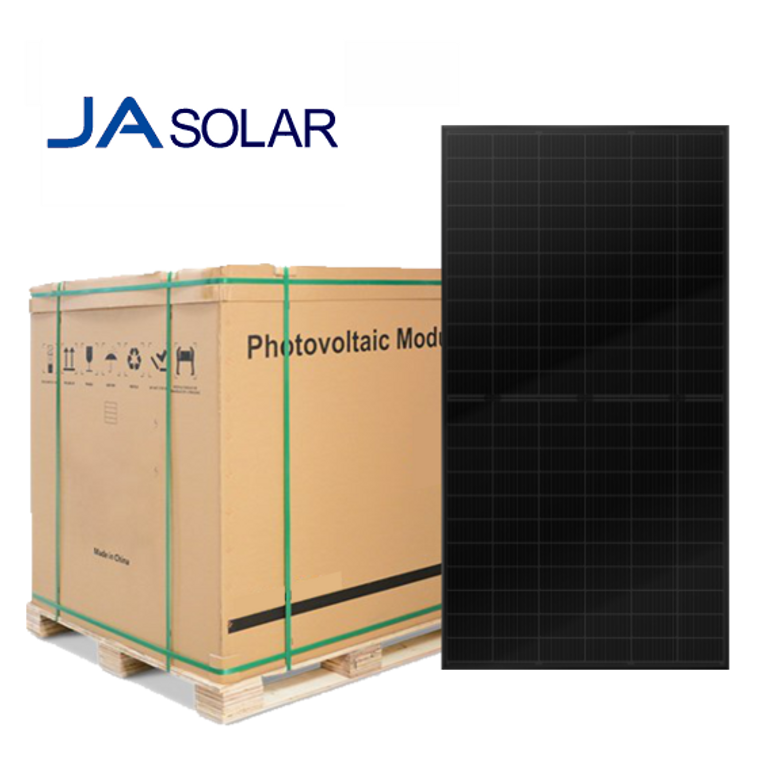

• Packaging – 36 modules per pallet, 864 modules per 40HQ
• Warranty – 12-Year Product, 30-Year Linear Power Output
