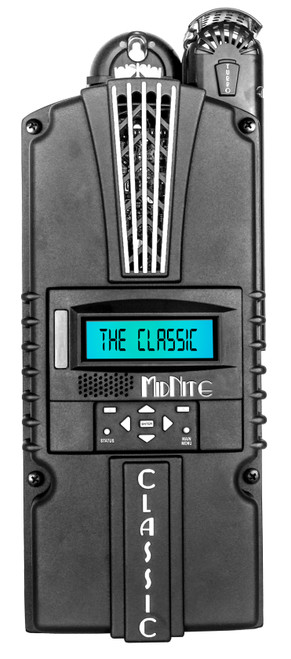

MidNite Solar Classic 200 MPPT Charge Controller – 200VDC, 79A, HyperVOC, Internet Monitoring
The MidNite Solar Classic 200 is a powerful and flexible MPPT charge controller designed for larger renewable energy systems. With a maximum operating voltage of 200VDC and up to 79A output, it supports 12V–72V battery banks and offers advanced protections including Arc-Fault and Ground Fault Detection. Featuring exclusive HyperVOC technology for extended voltage limits, full internet monitoring, and compatibility with solar, wind, and hydro applications, the Classic 200 delivers unmatched performance and reliability.
Key Specifications
• Model – Classic 200 MPPT Charge Controller
• Maximum Operating Voltage – 200VDC
• Output Current – Up to 79A
• Battery Bank Range – 12V to 72V nominal
• Battery Types – Flooded, AGM, Gel, Lithium, and more
• Exclusive HyperVOC – Extends VOC limits to 248V
• Modes – Solar, Wind, Hydro MPPT modes
• Protection – Arc-Fault Protection, Current Limit, Ground Fault, Overload, Over-Temp
• Monitoring – Local & Remote, MyMidnite.com online status monitoring
• Communication – Modbus via Ethernet & RS232
• Data Logging – 380 days of daily history, 24 hours of 5-minute interval data
• Parallel Capable – Yes, supports multiple Classic controllers
• Cooling – Efficient heat-sink with fan cooling
• Dimensions – 14.9” × 6” × 4” (378 × 152 × 102 mm)
• Weight – 12 lbs (5.4 kg)
• Certifications – ETL listed (US & Canada), FCC Class B, CE Compliant
• Operating Temp – -40°C to +40°C (full output)
Features
• Built-in Arc-Fault & Ground Fault Protection
• Manual & Auto Equalization modes
• Ethernet-ready with MyMidnite remote monitoring
• Full Internet capability with Android/iOS app support
• Communicates with MidNite Whizbang Jr. for SOC monitoring
• Compatible with MidNite Clipper for wind/hydro applications
• Designed and assembled in the USA
