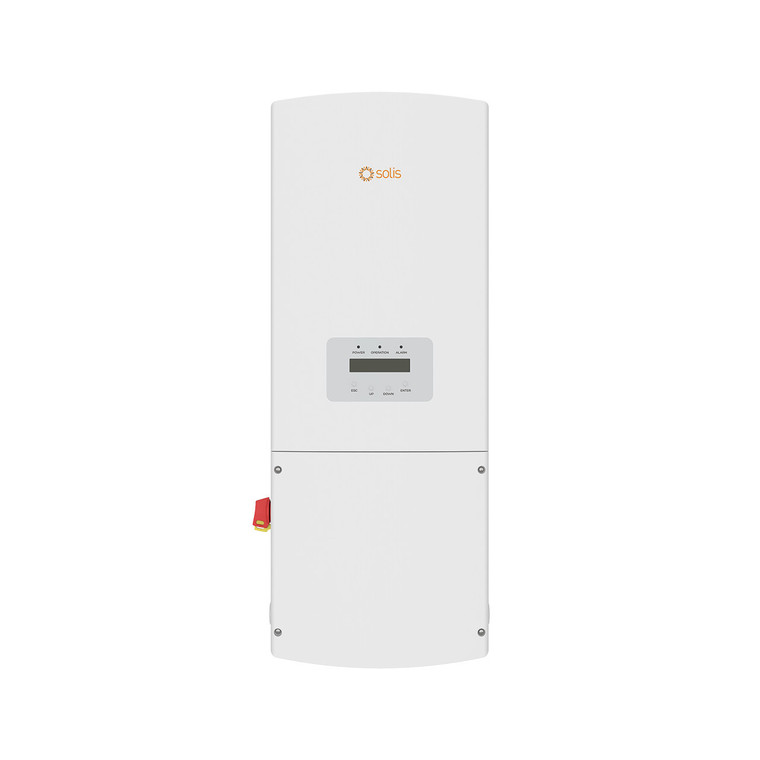

Solis 3.6kW Single-Phase Grid-Tied Solar Inverter | 240/208V | Dual MPPT | APS Rapid Shutdown
The Solis 3.6kW single-phase grid-tied inverter is designed for high-efficiency residential PV systems, featuring dual MPPTs, integrated AFCI, and rapid shutdown compatibility for code-compliant installations.
Key Specifications
• Model – Solis-1P3.6K-4G-US-PLUS
• Inverter Type – Single Phase Grid-Tied String Inverter
• Max. input voltage – 600 V
• Rated voltage – 330 V
• Start-up voltage – 120 V
• MPPT voltage range – 90–520 V
• Max. input current – 14 A / 14 A
• Max. short circuit current – 22 A / 22 A
• MPPT number / Max. input strings number – 2 / 2
• Rated output power – 3.6 kW
• Max. apparent output power – 3.6 kVA
• Max. output power – 3.6 kW
• Rated grid voltage – 1Φ, PE, 240 V / 208 V
• Rated grid frequency – 60 Hz
• Max. output current for 240V grid – 15.0 A
• Max. output current for 208V grid – 17.3 A
• Power factor – >0.99 (0.8 leading -0.8 lagging)
• THDi – <3%
• Max. efficiency – 97.3%
• CEC efficiency – 96.6%
• DC reverse-polarity protection – Yes
• Ground fault monitoring – Yes
• Anti-islanding protection – Yes
• Integrated AFCI – Yes
• Integrated DC switch – Yes
• Multi peak scan – Yes
• Rapid shutdown – Built-in APS or Tigo Transmitter
• Surge protection – DC Type II / AC Type III
• Topology – Transformerless
• Self-consumption (night) – <1 W
• Relative humidity – 0–100%
• Operating ambient temperature range – -13°F to 140°F (-25°C to 60°C)
• Storage environment temperature range – -13°F to 176°F (-25°C to 80°C)
• Ingress protection – TYPE 4X
• Cooling concept – Natural cooling
• Max. operation altitude – 13,120 ft (4000 m)
• Dimensions (W × H × D) – 13.9 × 31.9 × 6.5 in (353 × 810 × 165 mm)
• Weight – 33.1 lbs (15 kg)
• DC connection – 1 knockout for 3/4" conduit at bottom, side and back, Screw clamp terminal
• AC connection – 1 knockout for 3/4" conduit at bottom, side and back, QT terminal
• Display – LCD
• Communication – RS485, Optional Cellular, Wi-Fi
• Compliance – UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2No.107.1-1
