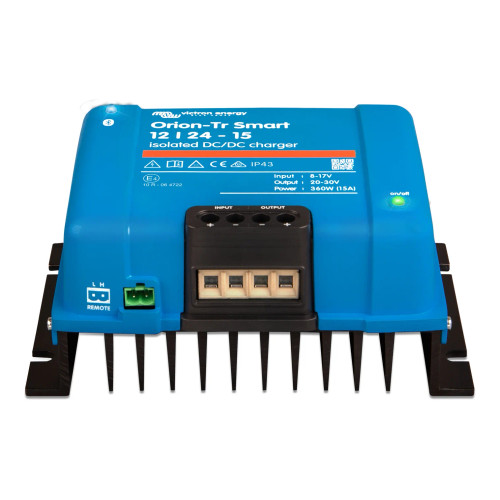

Victron Energy Orion-Tr Smart 12/24-15A (360W) Isolated DC-DC Charger

Victron Energy Orion‑Tr Smart 12/24‑15A (360W) Isolated DC‑DC Charger

The Victron Orion‑Tr Smart 12/24‑15A is a fully isolated DC‑DC charger designed for converting 12V DC to 24V DC while safely charging auxiliary batteries in mobile and off-grid systems. With Bluetooth programmability, high efficiency, and rugged construction, it's ideal for vehicles, boats, and industrial equipment requiring a 24V output from a 12V system.

Galvanic isolation ensures safe separation of input and output, making this charger perfect for sensitive and high-reliability installations.

Key Specifications

• Model – Orion‑Tr Smart 12/24‑15A (Isolated)
• Charger Type – Isolated DC‑DC Converter/Charger
• Input Voltage Range – 8–17 V DC
• Output Voltage Range – 18–30 V DC (adjustable)
• Nominal Output Voltage – 24.2 V
• Continuous Output Current – 15 A @ 40 °C
• Max Output Current (10 s) – 25 A
• Short-Circuit Output Current – 40 A
• Output Power – 360 W @ 40 °C / 430 W @ 25 °C
• Efficiency – 88%
• Output Noise – 2 mV RMS
• No Load Input Current – <100 mA
• Standby Current – <1 mA
• Galvanic Isolation – 200 VDC between input/output/case
• Bluetooth – Built-in (VictronConnect app support)
• Remote On/Off – Supported
• Parallel Operation – Not supported
• Operating Temperature – -20 °C to +55 °C (derates 3%/°C above 40 °C)
• Humidity – Max. 95% non-condensing
• Protections – Over-temp, short-circuit, overload, reverse polarity
• Enclosure Rating – IP43 (electronics), IP22 (connections)
• Terminal Type – Screw terminals
• Max Cable Size – 16 mm² (AWG 6)
• Dimensions – 130 × 186 × 70 mm (5.1 × 7.3 × 2.8 in)
• Weight – 1.8 kg (4.0 lb) ✅
• Warranty – 5 Years Manufacturer Warranty

Benefits & Applications

• Efficiently steps up 12V DC to 24V DC for 24V service battery charging
• Ideal for 12V vehicles, boats, and trailers with 24V battery banks
• Galvanic isolation ensures electrical separation and system safety
• Fully configurable charging profiles via Bluetooth
• Silent operation with no fan – reliable in noise-sensitive installs
• Engine-run detection compatible with smart alternators
• Supports lithium, AGM, GEL, and lead-acid battery types
• Certified to meet international emissions and safety standards
