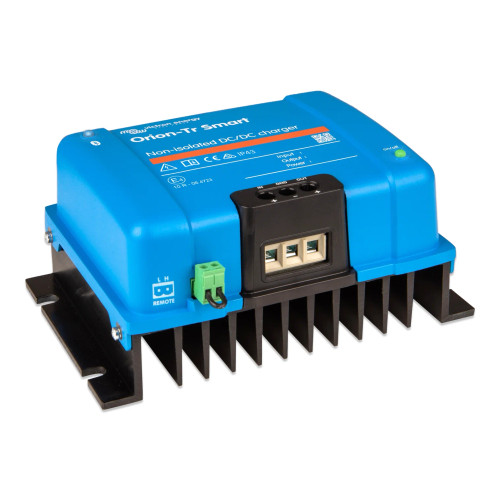

Victron Energy Orion-Tr Smart 12/24-15A (360W) Non-Isolated DC-DC Charger
The Victron Orion-Tr Smart 12/24-15A is a high-efficiency, non-isolated DC-DC charger designed to convert 12V input to a stable 24V output, with a continuous power capacity of 360W. With integrated Bluetooth, it can be configured and monitored wirelessly via the VictronConnect app. This unit is perfect for dual-battery systems in vehicles, RVs, boats, or off-grid applications.
Engineered for professional performance, it features fully adjustable output voltage, overload protection, and short-circuit safety—ideal for powering sensitive DC equipment or charging auxiliary batteries.
Key Specifications
• Model – Orion-Tr Smart 12/24-15A (360W)
• Type – Non-isolated DC-DC charger
• Input Voltage Range – 8–17V DC
• Under Voltage Shutdown – 7V
• Under Voltage Restart – 7.5V
• Nominal Output Voltage – 24.2V DC
• Output Voltage Adjust Range – 18–30V
• Output Voltage Tolerance – ±0.2V
• Continuous Output Current – 15A
• Max Output Current (10s) – 25A
• Short Circuit Current – 40A
• Output Power at 25°C – 430W
• Continuous Output Power at 40°C – 360W
• Efficiency – 88%
• No Load Input Current – <100 mA
• Standby Current – <1 mA
• Power Supply Mode – Yes, output voltage can be set via Bluetooth
• Operating Temperature – -20°C to +55°C (derate 3% per °C above 40°C)
• Humidity – Max. 95%, non-condensing
• DC Connection – Screw terminals
• Max Cable Cross-Section – 16 mm² (AWG6)
• Weight – 1.6 kg (3.5 lbs)
• Dimensions – 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 in)
• Protection Category – IP43 (electronics), IP22 (connection area)
• Standards – EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10
