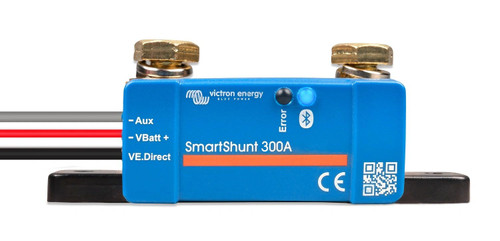

Victron Energy SmartShunt 300A Bluetooth Battery Monitor

The Victron SmartShunt 300A IP65 is a compact, waterproof Bluetooth battery monitor that replaces a traditional battery monitor display with smart device integration. Designed for reliability and precision, it’s ideal for harsh environments and off-grid or mobile energy systems.

•Model – Victron SmartShunt 300A IP65 (SHU065130050)
•Device Type – Bluetooth Battery Monitor (Shunt-based)
•Max Current – 300A
•Voltage Range – 6.5–70 VDC
•Power Consumption – <1 mA
•Battery Capacity Range – 1–9999 Ah
•Auxiliary Input – For monitoring a second battery, midpoint voltage, or temperature (sensor sold separately)
•Communication – Bluetooth, VE.Direct port
•Operating Temperature – -40°F to +122°F (-40°C to +50°C)
•Dimensions (L × W × H) – 4.72 × 2.13 × 1.82 inches (120 × 54 × 46 mm)
•Weight – 0.75 lbs (0.34 kg)
•Protection Category – IP65 (Dust-tight and protected against water jets)
•Accuracy – ±0.4% (current), ±0.3% (voltage)
•Certifications – EN 60335-1, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3

With Bluetooth connectivity and high-accuracy monitoring, the SmartShunt IP65 offers a clean, minimalist solution for real-time battery tracking without the need for a dedicated display.
