Victron MPPT 100/20 Solar Charge Controller

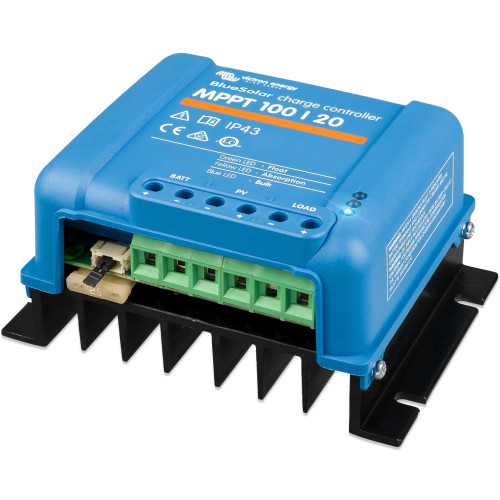

Victron Energy BlueSolar MPPT 100/20 Solar Charge Controller
The Victron BlueSolar MPPT 100/20 is a high-performance solar charger for 12 V, 24 V, and 48 V battery systems. It supports up to 20 A charging current, ultra-fast MPPT tracking, intelligent load output, and VE.Direct communication (Bluetooth optional). Ideal for RVs, off-grid cabins, marine, and backup power systems.
Key Specifications
• Model – BlueSolar MPPT 100/20
• Battery Voltage – 12 V / 24 V / 48 V auto-select
• Max Charge Current – 20 A
• Max PV Input Voltage – 100 V open-circuit
• Max PV Power – 290 W (12 V) / 580 W (24 V) / 1160 W (48 V)
• MPPT Efficiency – Up to 98%
• Load Output – 20 A, short-circuit protected, BatteryLife intelligent disconnect
• Charge Algorithm – Multi-stage adaptive (bulk, absorption, float), temperature compensated
• Self‑Consumption – 20 mA (12 V), 10 mA (24/48 V) load on
• Cooling – Natural convection
• Protections – Over-temperature, reverse polarity, short circuit, PV reverse current
• Communication – VE.Direct port (Bluetooth via optional dongle)
• Enclosure Rating – IP43 electronics / IP22 terminals
• Dimensions – 3.94 × 4.45 × 1.57 inches
• Weight – 1.3 lbs
• Operating Temperature – -22 °F to +140 °F (full output up to +104 °F)
• Terminals – AWG 10 (6 mm²)
• Warranty – 5-year limited warranty
