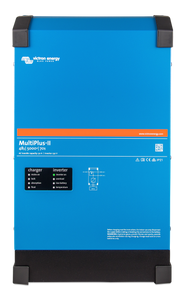

Victron MultiPlus II 24/5000

Victron MultiPlus II 24/5000

SKU:
VCTRN-MLTPLS--245000
$2,246.64
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Spec Sheet
Description

Victron Quattro 24/5000/120-100/100 Inverter/Charger – 5000VA | 24V DC | 120V AC

The Victron Quattro 24/5000 is a high-capacity, multifunctional inverter/charger designed for off-grid, backup, and hybrid power systems. With dual AC inputs, seamless switching, and advanced features like PowerAssist and remote monitoring, it ensures reliable, uninterrupted power for residential, commercial, and industrial applications.

KEY SPECIFICATIONS

• Model – Victron Quattro 24/5000/120-100/100 120V
• Inverter Power – 5000 VA (4000W continuous output)
• Charger Current – 120 Amps
• Input Voltage – 24V DC
• AC Output Voltage – 120V AC ± 2%
• Output Frequency – 60 Hz ± 0.1%
• Transfer Switch – Dual AC input, 2 × 100A automatic transfer
• Waveform – Pure sine wave
• PowerAssist – Boosts capacity of limited shore or generator input
• Parallel & 3-Phase Capability – Up to 6 units in parallel or 3-phase setup
• Remote Monitoring – VE.Bus, GX device compatible, VRM portal support
• Dimensions – 23.3" H × 13.0" W × 10.2" D (59.2 × 33 × 26 cm)
• Weight – 66.1 lbs (30 kg)
• Enclosure – Powder-coated aluminum, wall-mountable
• Operating Temperature – -40°C to +65°C (derating above 40°C)
• Protections – Overload, short-circuit, over-temperature, reverse polarity
• Warranty – 5 Years Manufacturer Warranty
